What Is a Silicon Wafer?

Silicon wafers, also referred to as semiconductor wafers, electronic wafers, or simply "wafers," are ultra-thin slices of semiconductor-grade silicon. They serve as the fundamental substrate wafer material in the manufacturing of semiconductor devices, integrated circuits (ICs), and microelectronics. Silicon wafers are meticulously polished to achieve an ultra-smooth, mirror-like surface with minimal surface irregularities, essential for precise microchip and IC fabrication.

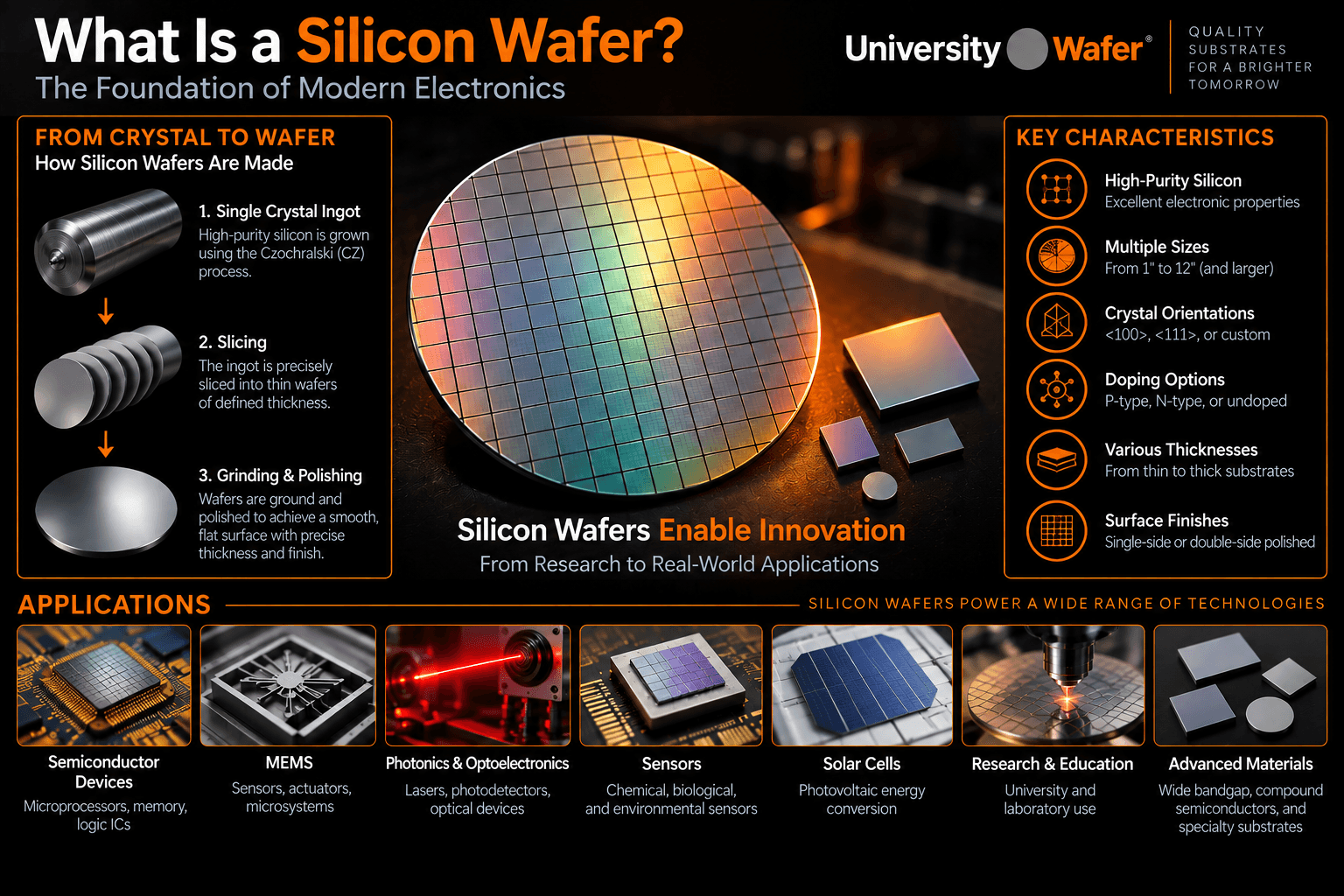

The silicon wafer shown in the image is primarily used in the fabrication of integrated circuits (ICs), which are the building blocks of modern electronic devices. Each square or rectangle on the wafer represents a microchip that will be separated, packaged, and mounted onto printed circuit boards (PCBs). In this case, the application highlights its role in manufacturing central processing units (CPUs), essential components for computers, smartphones, and countless other digital systems. These ICs are created through photolithography and etching processes, enabling millions to billions of transistors to be embedded into a single chip for high-speed data processing.

Key Attributes of Silicon Wafers:

• Silicon Purity: Exceptionally clean semiconductor substrates, free from impurities critical for silicon wafer processing.

• Silicon Flatness: Precision-polished surfaces, making them ideal substrates for electronic circuits.

• Silicon Diameters and Variety: Available in diameters ranging from 25.4mm, 50.8mm, 76.2mm, 100mm, 150mm, 200mm, and 300mm with varying thicknesses, resistivities, and crystal orientations.

Silicon Wafer Fabrication Process:

1. Silicon Crystal Growth (Czochralski Process):

   • High-purity silicon is melted, and a seed crystal initiates growth, forming a single-crystal silicon ingot essential for semiconductor wafer manufacturing.

2. Silicon Flat or Notch Grinding:
   • Ingot edges are ground to precise flats or notches for correct alignment, ensuring optimal silicon wafer fabrication processes.
3. Silicon Slicing:
   • Ingots are sliced into thin silicon wafers (computer wafers or chip wafers) using advanced diamond saws or wire saw technology, preparing them for silicon wafer chip production.
4. Silicon Edge Grinding:
   • dges of silicon wafers are ground to remove defects from slicing, ensuring structural integrity for further wafer processing steps.
5. Silicon Lapping:
   • echanical abrasion refines wafer flatness and surface smoothness, preparing the wafer substrate for semiconductor device fabrication.
6. Silicon Etching:
   • hemical baths dissolve microscopic surface irregularities, removing particles and enhancing wafer cleanliness vital for electronic wafers.
7. Silicon Polishing:
   • hemical-mechanical polishing (CMP) achieves a mirror-like finish on the wafer surface, crucial for integrated circuit wafer production.
8. Silicon Cleaning:
   • Intensive cleaning processes such as RCA cleaning ensure wafers are pristine and free from contaminants, ready for semiconductor wafer processing.

Applications of Silicon Wafers

Semiconductors:

• Silicon wafers are the main component of the semiconductors used in computers, smartphones, and other electronics, making them integral to silicon chip manufacturing.

Silicon Wafer Uses in Daily Life:

• Microelectronics: Computers, smartphones, microprocessors, CPUs, and other electronic devices.

• Automotive Electronics: Sensors, including tire pressure monitoring systems.

• Solar Cells: Photovoltaic cells converting solar energy into electricity.

Additional Applications of Silicon Wafers:

• MEMS (Microelectromechanical Systems): Used in medical devices, accelerometers, gyroscopes, and sensors.

• Optoelectronics: Integrated optical circuits in fiber optic communication systems.

How Silicon Wafers Become Electronics:

After silicon wafer fabrication, wafers undergo intricate processes to create integrated circuits (ICs) and silicon wafer chips:

• Photolithography: Silicon wafer chips are patterned to create transistor and circuit designs on CPU wafers and computer chips.

• Doping: Adding impurities (dopants) like boron and phosphorus to tailor electrical properties, essential for wafer chip functionality.

• Layer Stacking and Interconnections: Layers of transistors are connected via copper wires to form integrated circuits on chip wafers.

• Testing and Cutting: Wafers are tested and cut into silicon dies, forming microchips ready for use in computers and electronic devices.

Key Specifications in Silicon Wafer Fabrication:

• Diameter: Typically 100mm, 150mm, 200mm, and 300mm, used widely by major manufacturers like Intel for computer wafer and microprocessor wafer fabrication.

• Thickness: Usually ranges from 0.2mm to 1.5mm.

• Crystal Orientation: Common orientations are (100), (110), or (111).

• Resistivity: Determined by doping levels for specific electronic wafer applications.

• Surface Quality: Mirror-polished with ultra-low surface roughness critical for semiconductor manufacturing.

Silicon wafers are crucial in semiconductor manufacturing, forming the foundation for electronics used in every aspect of modern life, from consumer electronics to advanced automotive sensors.
